Krix Phonix

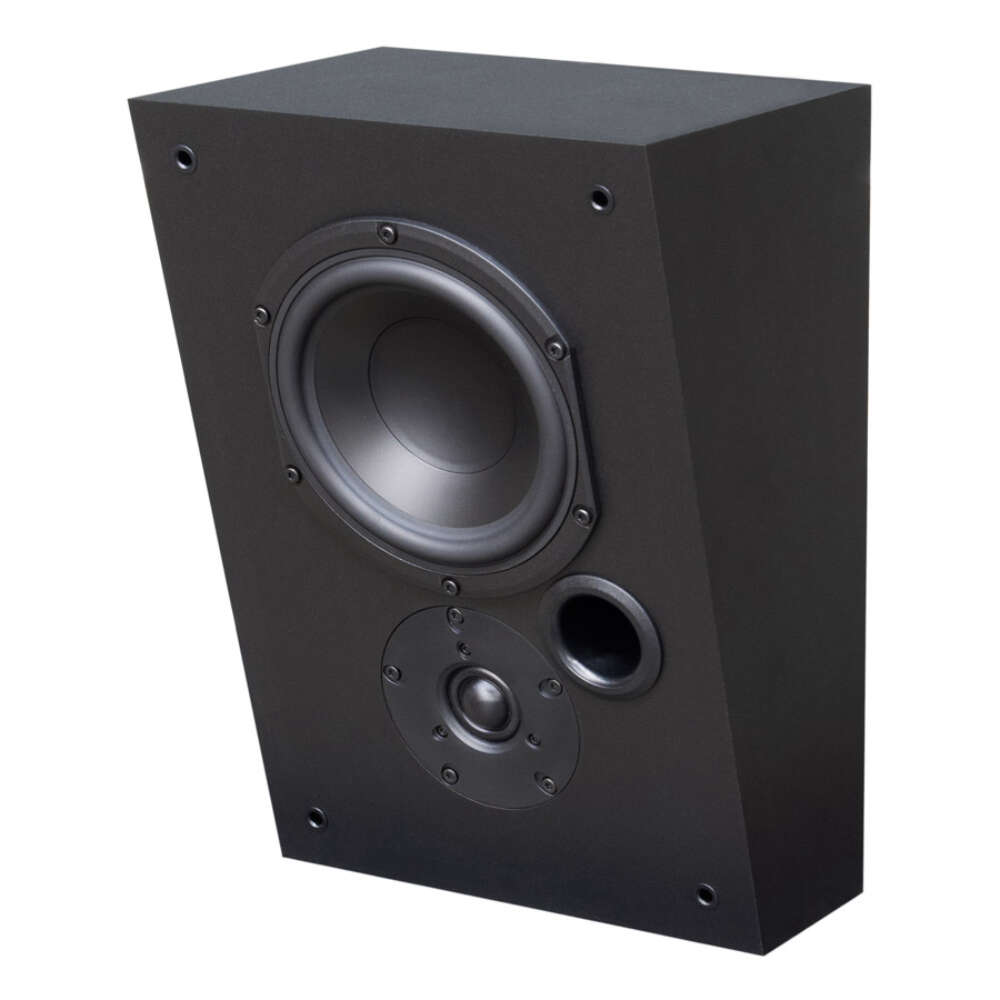

For an all-encompassing cinema sound in a conveniently sized package, the Phonix replicates the wedge-shaped design used in Krix’s commercial cinema surround speakers, allowing it to be mounted high and away from the listener, to maintain excellent pattern control and audio coverage to all listening positions.

Designed for on wall side and rear surround sound, the Phonix offers high power handling with low frequency extension down to 45Hz.

The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.

The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.

Complete with a braced, critically-damped enclosure, finished with a neat black cloth grille, the Phonix is a beautifully designed benchmark for surround loudspeaker reproduction.

For the ultimate cinema experience at home, play it through Krix.

POA - Contact us for a quote

Specifications

Electrical/Acoustic

Frequency range:
45Hz-20kHz in room response

Power handling:
50-150 Watts RMS recommended amplifier power

Sensitivity:
88dB for 2.83 volts at 1 metre

Impedance:
Nominally 8 Ohms

Configuration:
2-way

Crossover point:
1.8kHz

Enclosure type:
Bass reflex, front vented

Physical

Input Terminals: Gold plated binding posts

Dimensions: 375mm high x 260mm wide x 205mm deep at the top (109mm deep at the bottom)

Weight: 7kg each



Drivers

Low Frequency Driver: Single 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion

High Frequency Driver: 26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled
