Hypex N-Core® Class D amplifier topology
Linear power supplies
Automatic AC power recognition
Microprocessor controlled soft-start turn-on

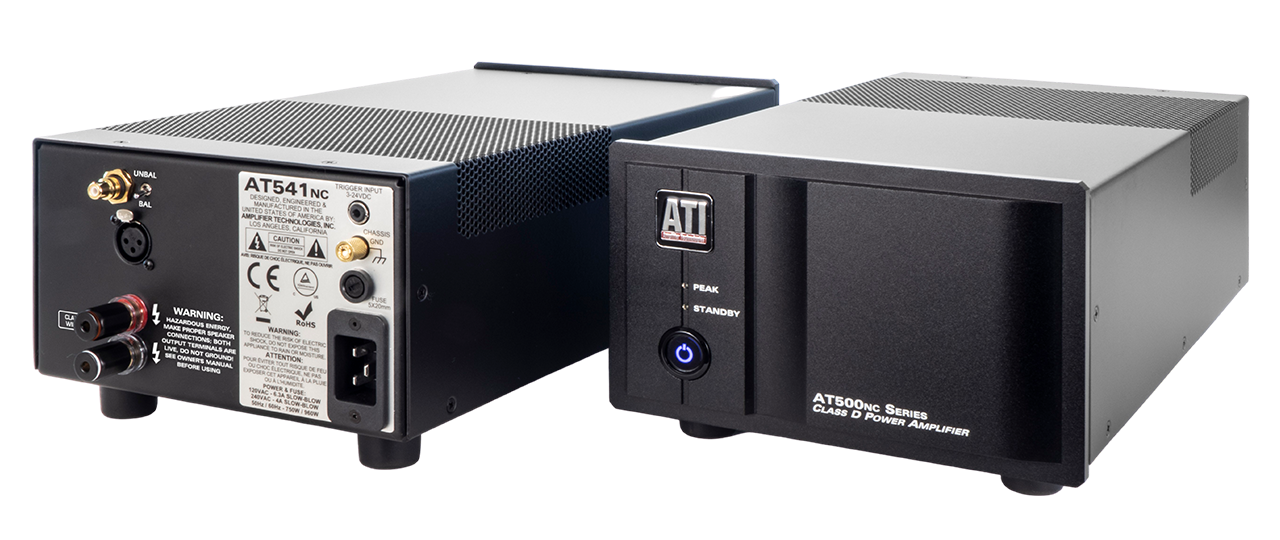

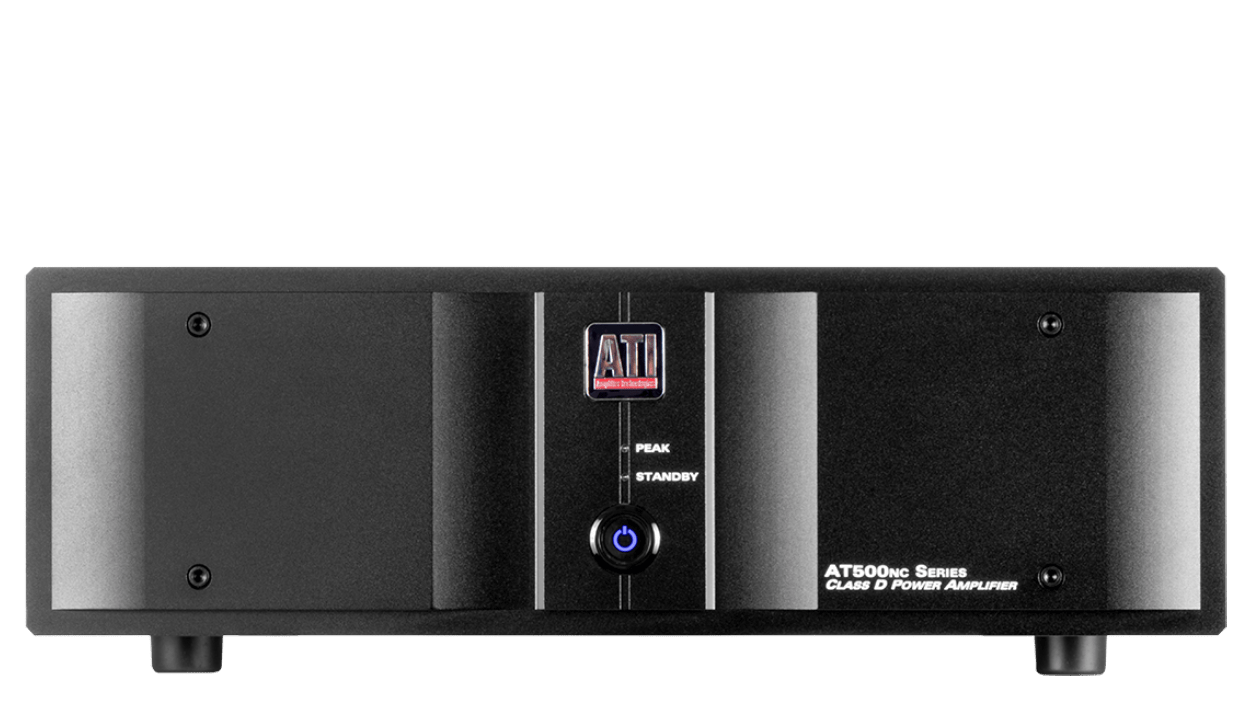

Designed and built on the musical and highly efficient Hypex N-Core® amplifier technology, the AT54XNC Series amplifiers deliver a substantial 500 watts per channel. By bridging each pair of amplifier output modules, output power is increased by 2.5x for greater headroom, loudspeaker drive and sonic impact. Available in 4 models from 1 to 4 channels, the AT54XNC Series offers efficient amplifier performance and value. High current toroidal transformers, a standard for all ATI power amplifiers, provide clean power and performance stability.
Hypex N-Core® Class D amplifier topology
Linear power supplies
Automatic AC power recognition
Microprocessor controlled soft-start turn-on

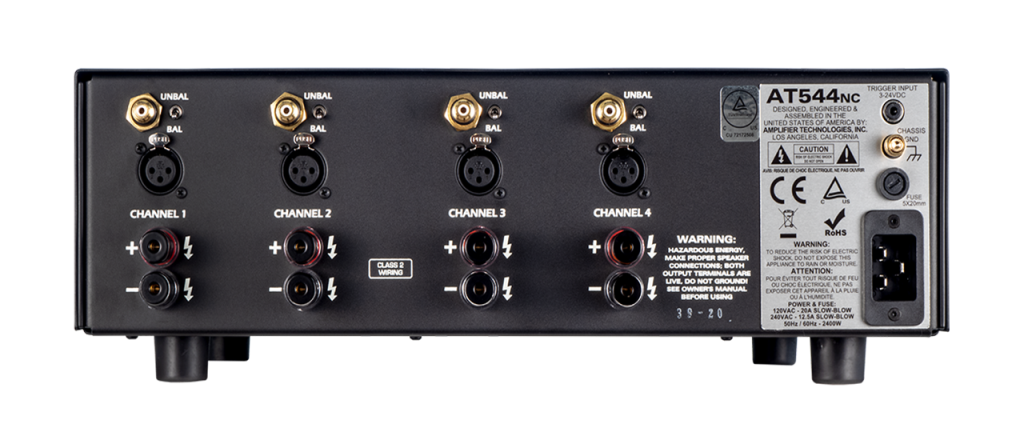

There is also a 1/8” mono mini jack for +12V trigger, a gold-plated chassis ground lug, a fuse holder and an IEC 20 Amp inlet for the provided detachable power cord.
The supplied power cord will have either: a NEMA 5-15 plug (Type B) for use in the USA, a BS 1363 (Type G) plug for use in the UK, or a Schuko (Type F) plug for use in the EU and the rest of the world.
Numbers of Channels
1 to 4
Full Bandwidth Power Output into 8Ω (FTC)
500WRMS
Full Bandwidth Power Output into 4Ω (FTC)
500WRMS
Frequency Response:
+0dB, -0.5dB 20Hz – 20kHz
Power Bandwidth (FTC)
+0,-3 dB 20Hz – 40kHz
Phase Response:
+5 to -15°, 20Hz – 20kHz @ 1W
Input Sensitivity for Full Rated FTC Output Power – 8Ω:
2.85 Volts
Signal-to-Noise Ratio (Ref FTC Rated Power, A-Wtd):
>120dB
Total Harmonic Distortion + Noise (20Hz – 20kHz):
<0.02%
Intermodulation Distortion:
<0.03%
Recommended Load Impedance:
Safe for all types of loads. Rated for 4Ω to 16Ω
Damping Factor:
>400
Crosstalk:
Greater than –90 dB from 20 Hz to 20 kHz
Gain
28.5dB ±0.2dB
Slew Rate:
>60V/µS
Input Impedance:
28kΩ
Output DC Offset
Less Than ±25mV
Chassis Dimensions (W x H x D) mm:
AT541NC: 216 x 153 x 270
AT542NC: 432 x 153 x 270
AT543NC-AT544NC: 432 x 153 x 394
Shipping Weight (kg):
AT541NC: 43/20
AT542NC: 49/22
AT543NC: 69/31
AT544NC: 79/36
Power Requirements
Universal Auto-Select AC Voltage Ranges: 90-132 VAC or 200-260VAC – 1x 20 Amp Circuit ≤1W (120 VAC)
Power Consumption (Standby)
≤1W (120 VAC), ≤0.5W (240 VAC)
Remote Trigger
Activated from 3.3VDC to 24 VDC via a heavy-duty relay
Protection Circuits
Optically – coupled with full automatic reset
Toroid Transformers
40% more efficient than EI type. Separate bi-filar windings for each channel guaranty lower noise and crosstalk
Circuit Boards
Double-sided, FR-4 glass-epoxy, computer-grade boards are assembled in-house
Soft Start Circuitry
New micro-processor controlled turn-on board first ascertains input voltage and configures transformers for 120V or 230V operation then ultra soft turn-on timers reduce in-rush current to a minimum. Multiple units can be turned on without tripping circuit breakers eliminating the need for sequencing.
Output Stage
Hypex N-Core NC-500 Class D amplifier modules with ATI’s custom input buffer insures edge-of-the-art operation.
Power Supply Capacitance
N/A
Power Cord
Dual detachable, 3-wire cord.
